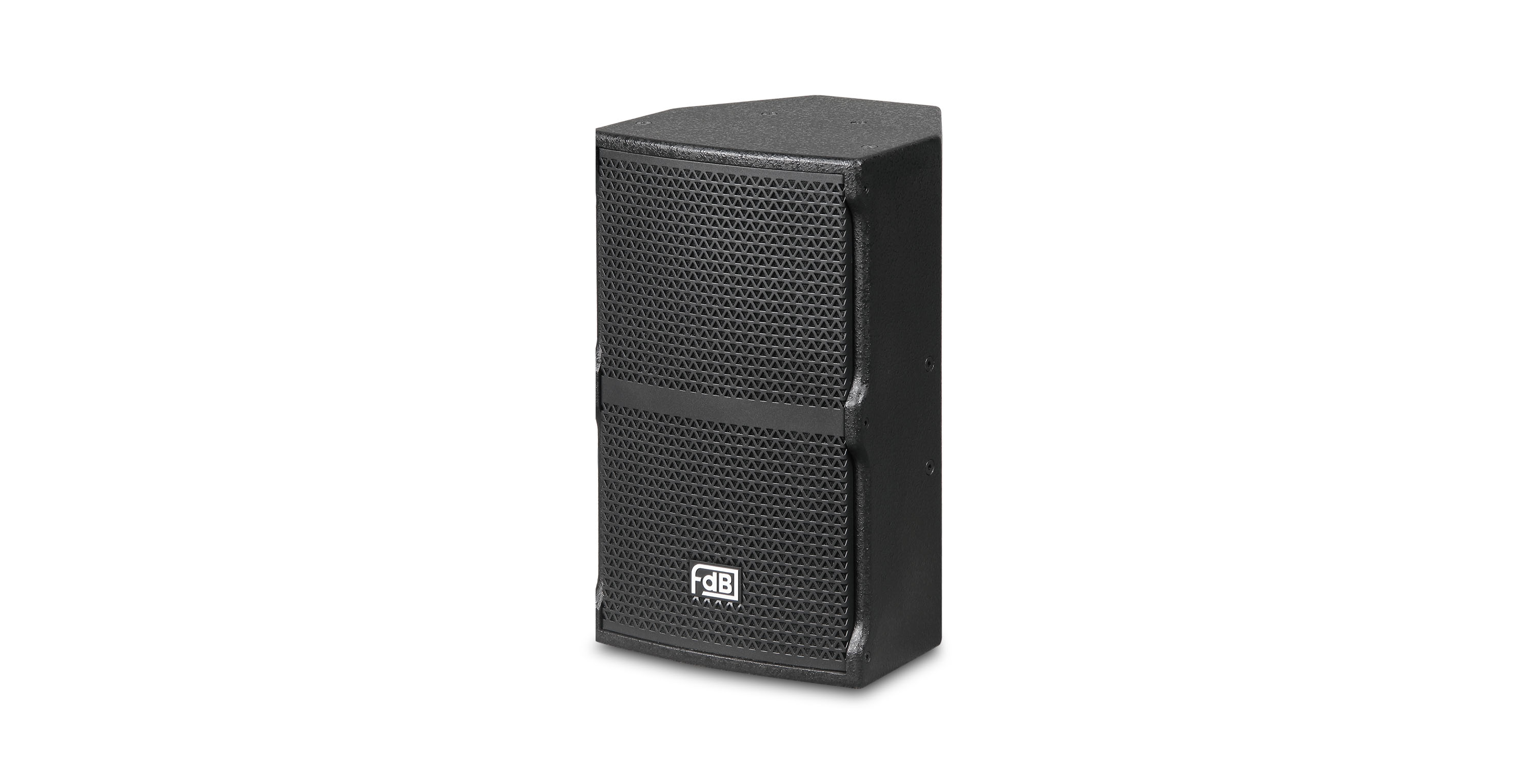

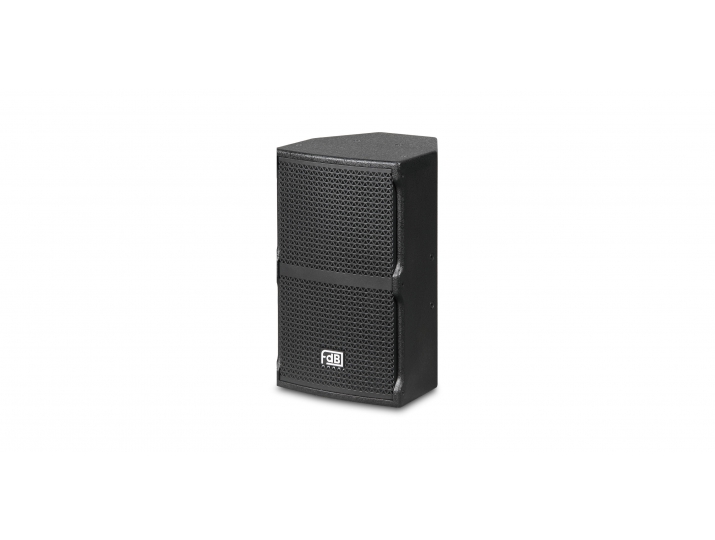

QS10II
Multi - Function
Contact
Features
● High quality plywood with special environmental protection paint
● Ultra-compact two way system
● Rotatable (50-100)°×55° horn
● High power output
● Flexible mounting options
● Top hat fitting for tripod
| FREQUENCY RESPONSE(-3dB) | 55 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 50 Hz-20kHz |
| DRIVERS | 1×10"(250mm)/2.5"voice coil LF |
| 1×1"(25mm)/ 1.4"voice coil HF | |
| RATED POWER | 250W RMS,1000W peak |
| SENSITIVITY | 95dB 1watt/1 metre |
| MAXIMUM SPL | 119dB continuous,125 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | (50-100)°×55° |
| CROSSOVER FREQUENCIES | 2.2kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 395mm×390mm×605mm |
| NET WEIGHT | 13 kg/pc |
| GROSS WEIGHT | 15 kg/pc |
QS110II
Description
The QS10Ⅱ is an all-purpose full-range loudspeaker designed for near-field contracting applications. Rated at 250 watts(RMS), fitted with one 10" woofer and one 1" exit compression driver coupled to a rotatable (50-100)°×55° horn.
