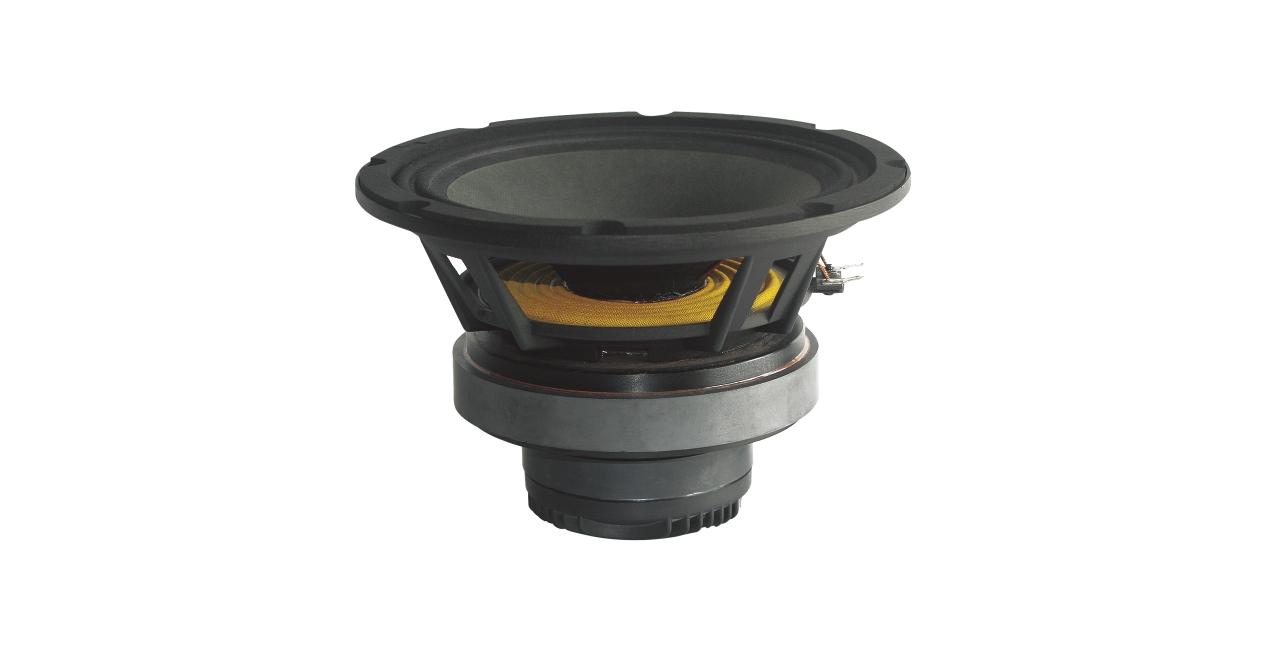

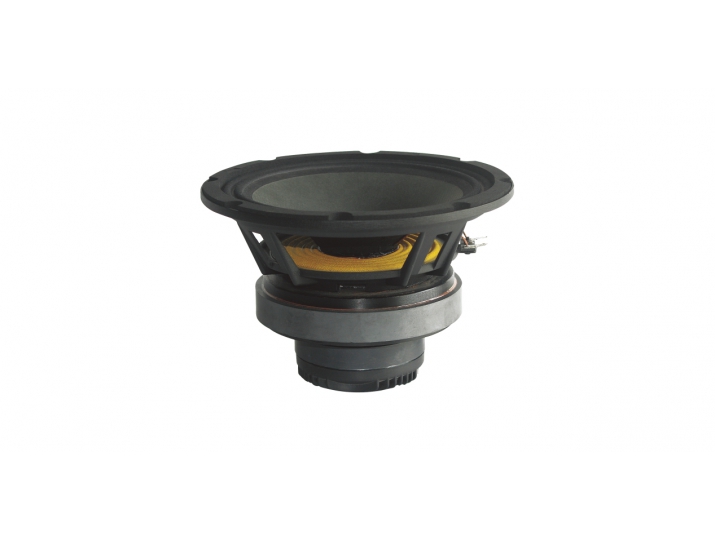

X834
Contact
| MODEL | CX834 | |
| GENERAL SPECIFICATIONS | ||
| Nominal Diameter | (lf)200/8,(hf)34.4/1.4 | mm/inch |
| Rated Impedance | 8 | ohm |
| Peak Power Capacity | 480 | Watt |
| Power Capacity | 120 | Watt |
| Sensitivity | (lf)94,(hf)107 | dB |
| Frequency Range | (lf)50-4000,(hf)1500-20000 | Hz |
| Minimum Impedance | (lf)6, (hf)7.8 | ohm |
| Voice Coil Diameter | (lf)50/2,(hf)34.4/1.4 | mm/inch |
| Voice Coil Material | (lf)Copper, (hf)CCAR | |
| Voice Coil Winding Depth | (lf)13 | mm |
| Number of layers | (lf)2 | |
| Kind of layer | outside | |
| Top Plate Thickness | 8 | mm |
| Cone Material | Half pressed pulp | |
| Diaphragm Material | Pure Titanium | |
| Suspension Material | Pure Titanium | |
| THIELE- SMALL PARAMETERS4 | ||
| Resonance frequency Fs | 50 | Hz |
| DC resistance Re | 7.2 | ohm |
| Mechanical facto Qms | 1.58 | |
| Electrical factor Qes | 0.29 | |
| Total factor Qts | 0.24 | |
| BL Factor BL | 13 | T.m |
| Effective Moving Mass Mms | 22 | gr |
| Equivalent Cas air load Vas | 31 | liters |
| Effettive piston area Sd | 0.022 | m2 |
| Max. linear excursion (mathematical) Smax | ±2.5 | mm |
| Voice-coil inductance @ 1KHz Le | 0.9 | mH |
| MOUNTING INFORMATION | ||
| Overall Diameter | 210 | mm |
| Bolt Circle Diameter | 197 | mm |
| Baffle Cutout Diameter | 182 | mm |
| Depth | 150 | mm |
| SHIPPING INFORMATION | ||
| Net Weight | 4.2 | kg |
| Shipping Weight | 4.5 | kg |
| Shipping Box | 220x220x170 | mm |
