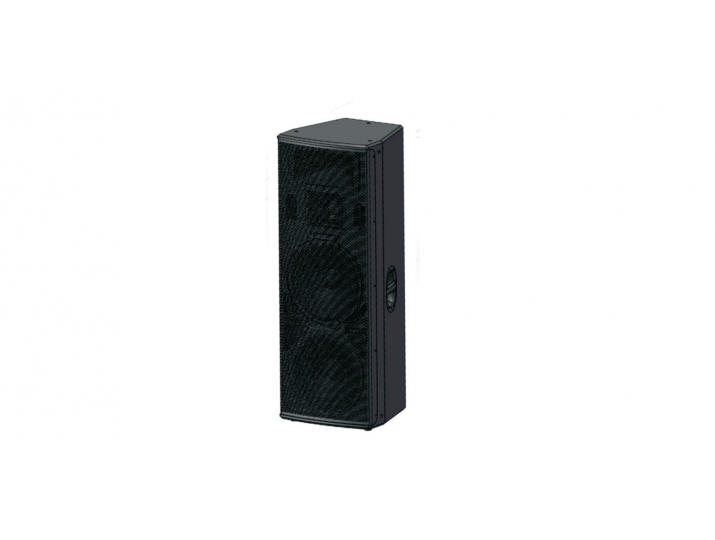

U2123
Professional Speaker
Contact
Features
● High quality plywood with special environmental protection paint
● Rotatable horn
● Flexible mounting options
● Good used for perform and entertainment venues
| MODEL | U2123 |
| FREQUENCY RESPONSE(-3dB) | 60Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 55Hz-20KHz |
| DRIVERS | 2×12"(300mm)/3"voice coil LF |
| 1×6"(160mm)/1.5"voice coil MF | |
| 1×1"(25mm) / 1.7"voice coil HF | |
| TOTAL POWER | 740W RMS,2960W peak |
| RATED POWER | LF 800W RMS,3200W peak |
| MF 80W RMS,320W peak | |
| HF 60W RMS,240W peak | |
| SENSITIVITY | 98dB 1watt/1 metre |
| MAXIMUM SPL | 126dB continuous,132 dB peak |
| IMPEDANCE | LF 8 ohms nominal |
| MF 8 ohms nominal | |
| HF 8 ohms nominal | |
| DISPERSION(-6dB) | 100° × 70° |
| CROSSOVER FREQUENCIES | 1KHz passive, 2.2KHz passive |
| INPUT CONNECTORS | 2×Speakon NL8 |
| PACKAGE SIZE | 440mm×430mm×1220mm |
| NET WEIGHT | 37 kg/pc |
| GROSS WEIGHT | 40 kg/pc |
DOWNLOAD
U2123
Description

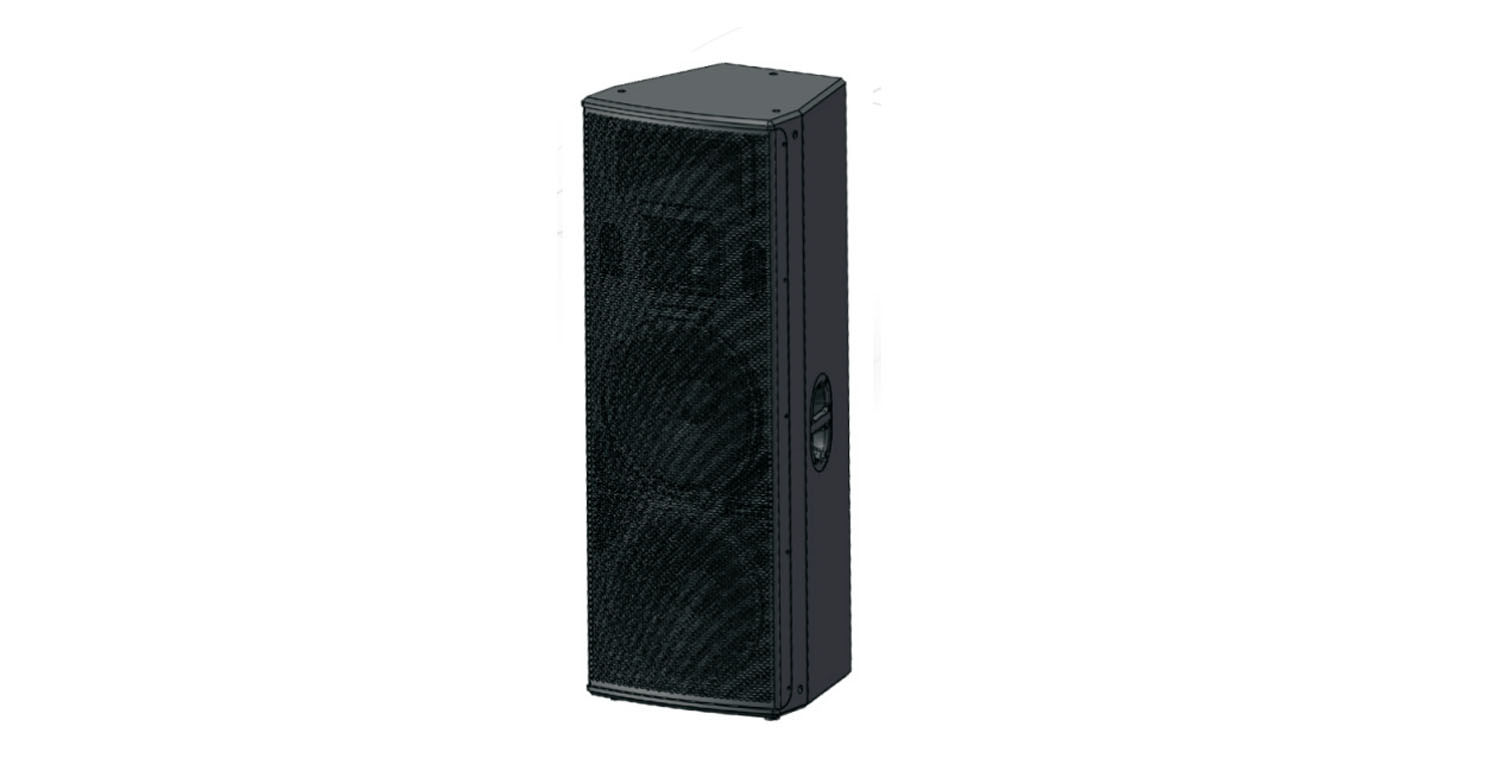

The U2123 is a three-way full-range loudspeaker designed tor perform made of high qullity plywood,Fitted with two 12" woofer. one 6" midrange and one 1" exit compression driver coupled to a rolatable horn.
