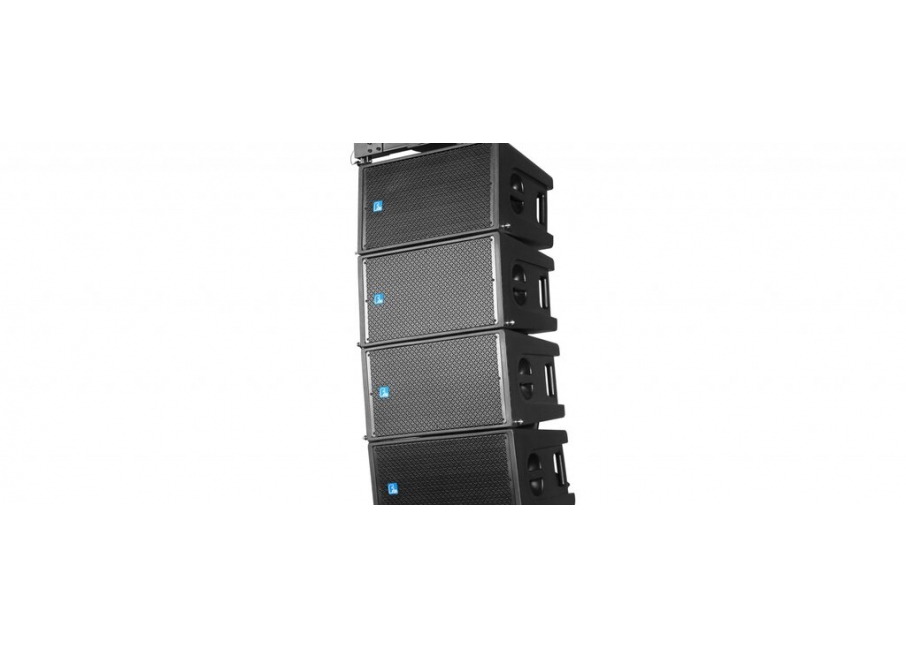

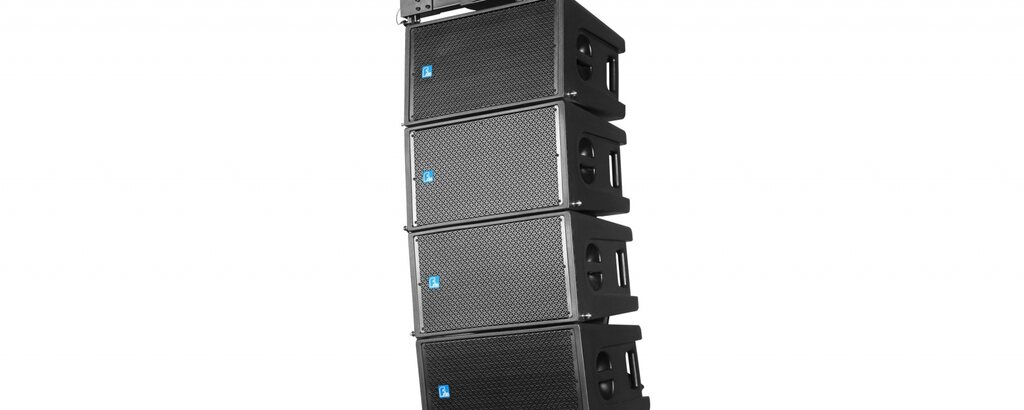

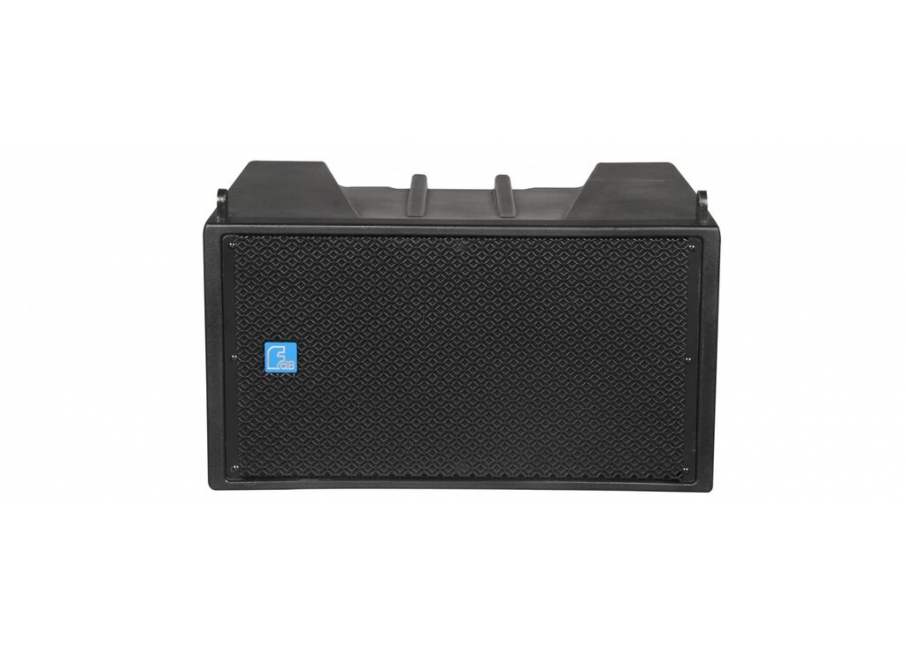

PLA312
All-weather Line Array System
Contact
Features
● Product parameters have been entered into EASE loudspeaker database
● Pass IP66 testing
● Polymer composite material mold forming box, five layers of waterproof, dustproof composite grille, strong weather resistance
● Passive way, simple operation, save amplifiers
● Can be matched with PLA212B
● Applications: outdoor fixed installation
| MODEL | PLA312 |
| FREQUENCY RESPONSE(-3dB) | 60Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 55KHz-20KHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 2×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY | 98dB 1watt/1 metre |
| MAXIMUM SPL | 124dB continuous,130 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | Horizontal coverage: 100° |
| Vertical coverage: Varies, depending on | |
| array length and configuration | |
| CROSSOVER FREQUENCIES | 1.8kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |

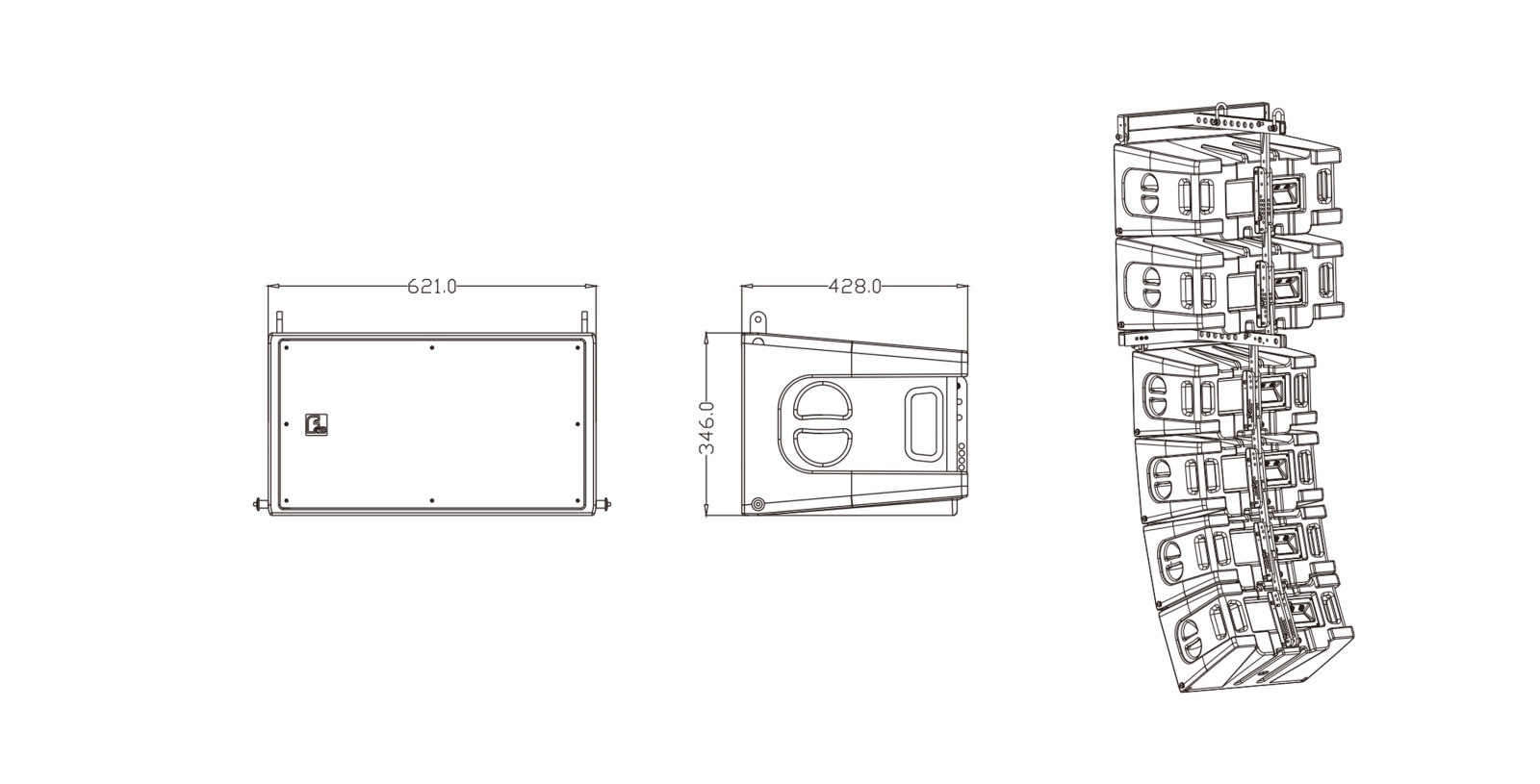

| PACKAGE SIZE | 518mm×436mm×720mm |
| NET WEIGHT | 21 kg/pc |
| GROSS WEIGHT | 25 kg/pc |
.jpg)
PLA312-2023
Description

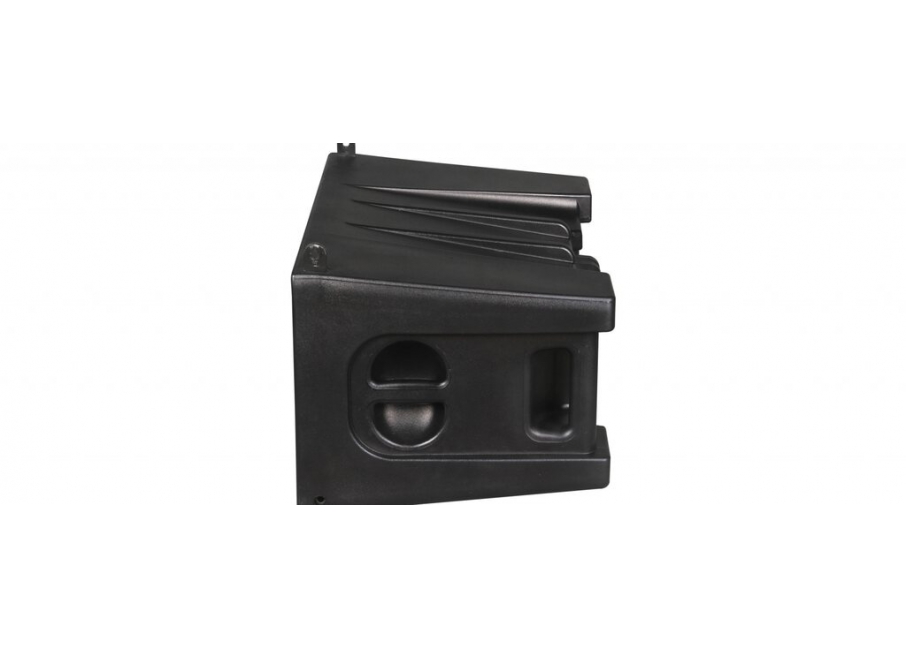

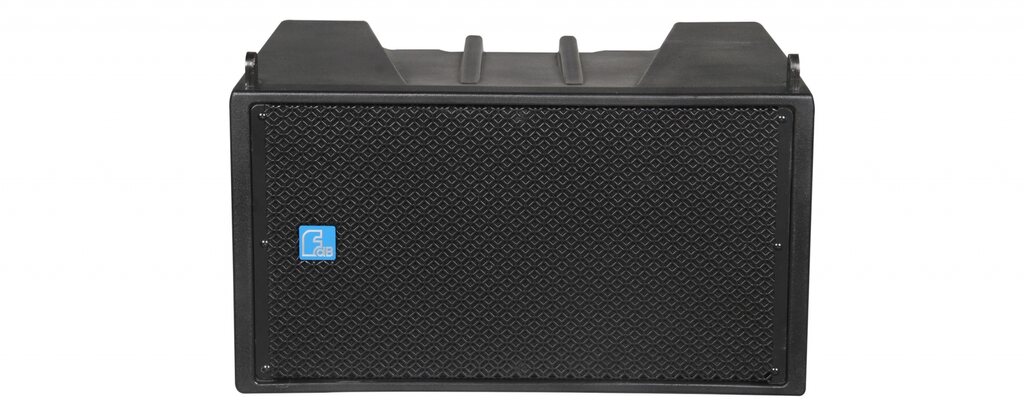

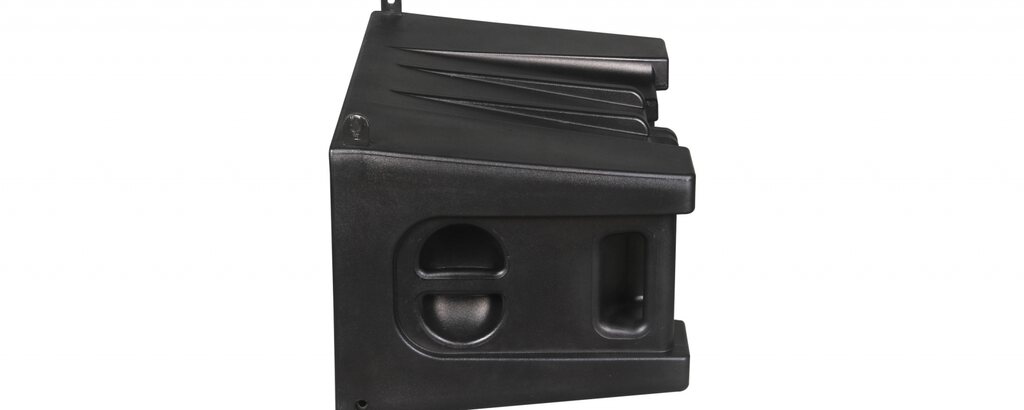

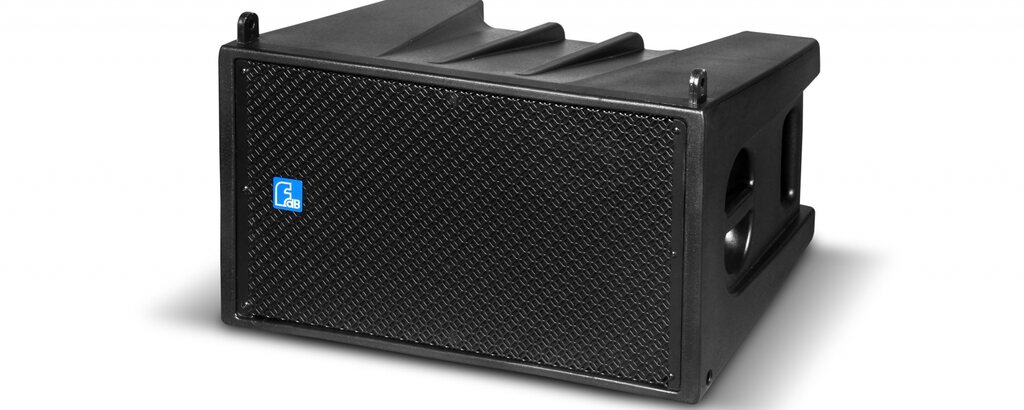

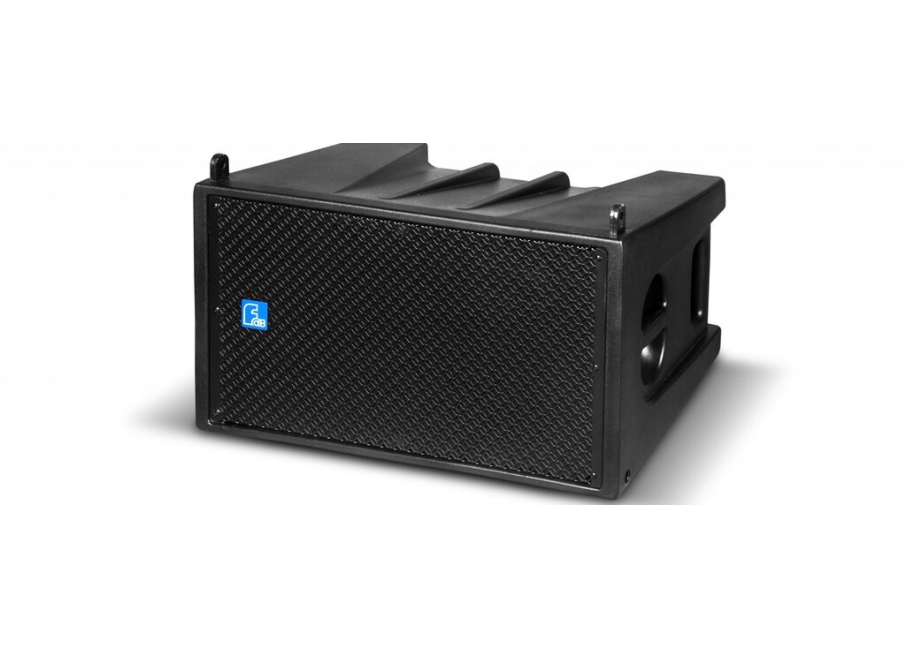

PLA312 is a two-way, all-weather line array speaker, designed with priority given to waterproof, dustproof, windproof, anti-uv aging, and five-layer grille design of different materials. The product meets the IP66 standard, all hanging parts and connecting parts are made of stainless steel or aluminum, features low-distortion mid-bass unit and high qaulity HF driver with special waveguide and horn, accurate coverage, three-point hanging system, ensure safety. Unit configuration:1x12" high efficiency mid-bass unit, 2x1" exit throat 44mm HF driver. The cabinet is made of polymer composite material through a special process.
