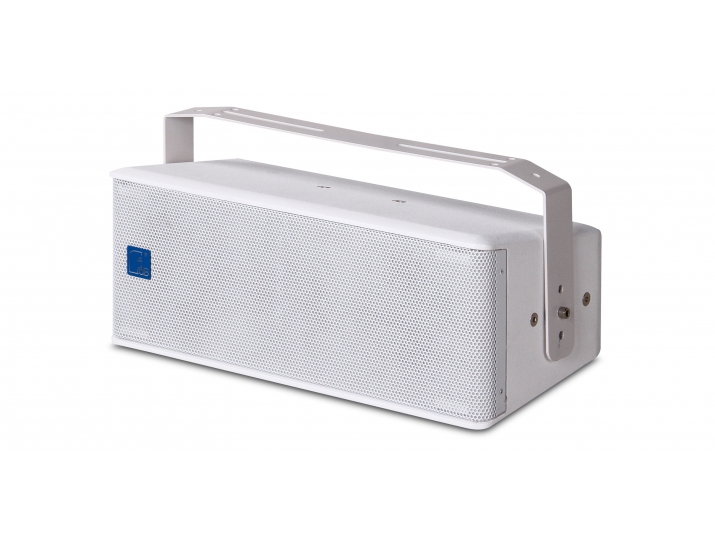

MINI206
Multi - Function
Contact
Features
● High quality plywood with special environmental protection paint
● Round 140°×140° wide dispersion horn
● Multi-angle rigging bracket
● Used for conference room small clubs and luxury shops.
| FREQUENCY RESPONSE(-3dB) | 65Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 60Hz-20KHz |
| DRIVERS | 2×6"(150mm)/1.5"voice coil LF |
| 1×1"(25mm)/ 1"voice coil HF | |
| RATED POWER | 160W RMS,640W peak |
| SENSITIVITY | 95dB 1watt/1 metre |
| MAXIMUM SPL | 116dB continuous,122 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 140°×140° |
| CROSSOVER FREQUENCIES | 2.1kHz passive |
| INPUT CONNECTORS | Terminal Clamp |
| PACKAGE SIZE | 633mmx281mmx593mm(carton/pair) |
| NET WEIGHT | 10 kg/pc |
| GROSS WEIGHT | 22 kg/pair |
20180619192635_54620
Description

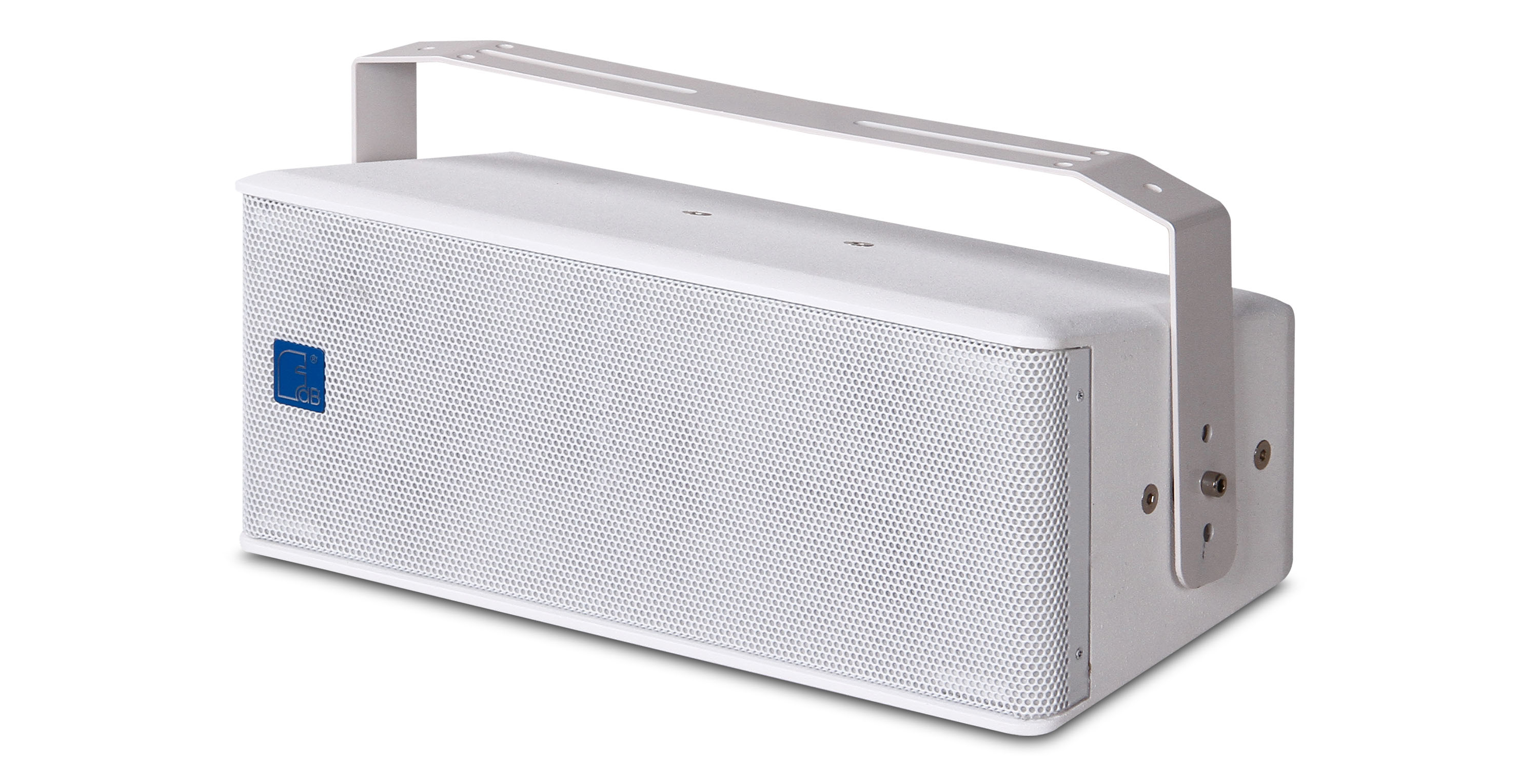

The MINI 206 is a two-way loudspeaker system with two 6" woofer and 1" exit compression driver coupled to a round 140°×140° wide dispersion horn.
