LH215II
Portable Speaker
Contact
Features
● High quality unit configuration, high strength plywood housing
● Light weight, easy handling
● High power output
● Applications: indoor and outdoor sound reinforcement in full range, multifunction halls
| MODEL | LH215Ⅱ |
| FREQUENCY RESPONSE(-3dB) | 45 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 40 Hz-20kHz |
| DRIVERS | 2×15"(385mm)/4"voice coil LF |
| 1×2"(50mm)/3"voice coil HF | |
| RATED POWER | 1200W RMS,4800W peak |
| SENSITIVITY | 101dB 1watt/1 metre |
| MAXIMUM SPL | 132dB continuous,138 dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 1.5 kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 660mm×605mm×1250mm |
| NET WEIGHT | 50 kg/pc |
| GROSS WEIGHT | 56 kg/pc |
LH215II-2023
Description

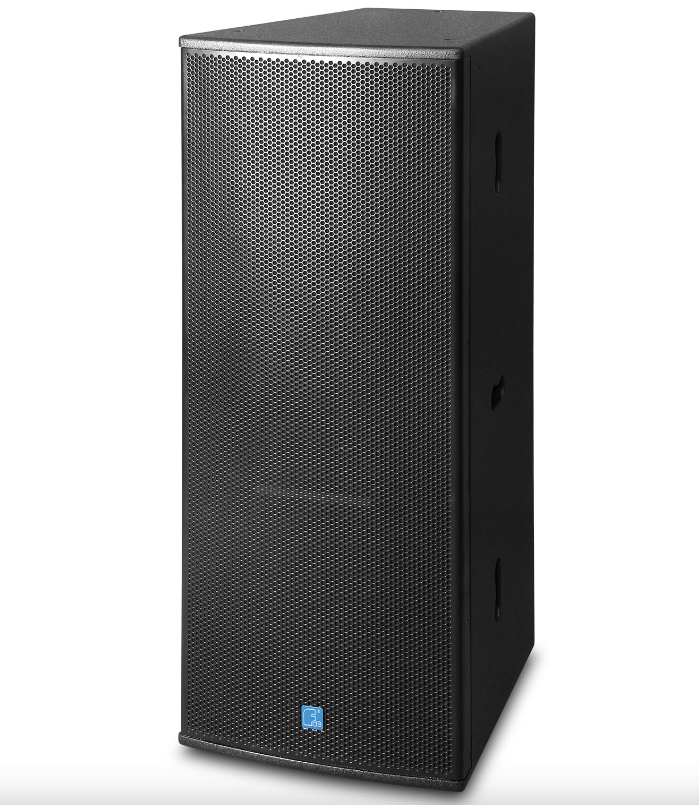

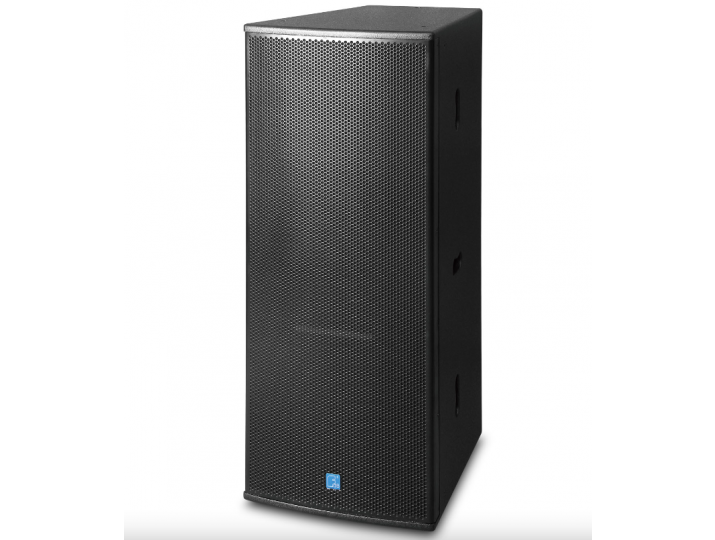

The LH215Ⅱ is a dual 15", light weight, high SPL, two way full range speaker with bright and powerful sound. Unit configuration: 2x15" high power neodymium mid-bass unit, 1x2" exit throat 75mm neodymium titanium diaphragm HF driver with special designed horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
