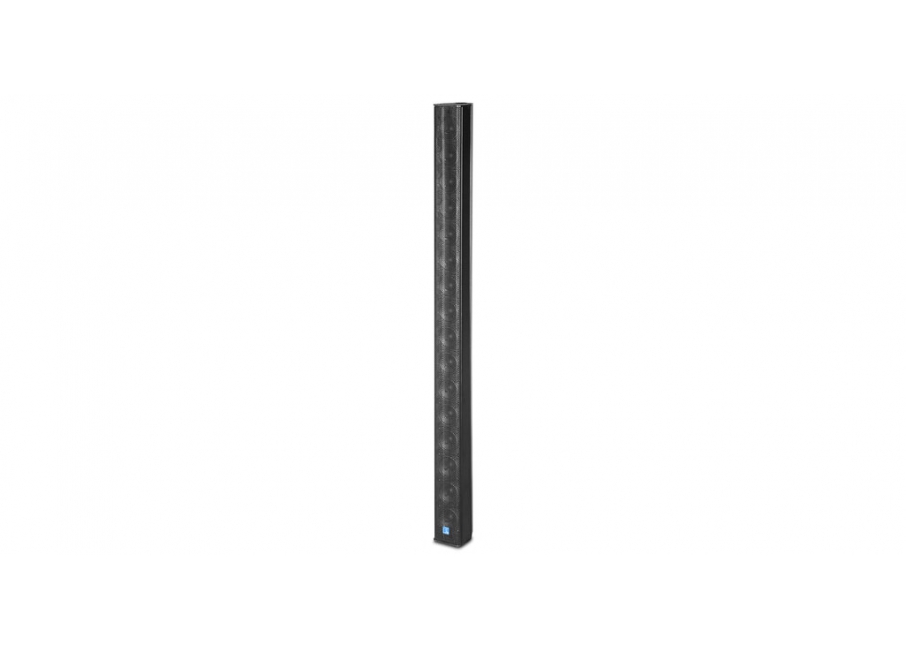

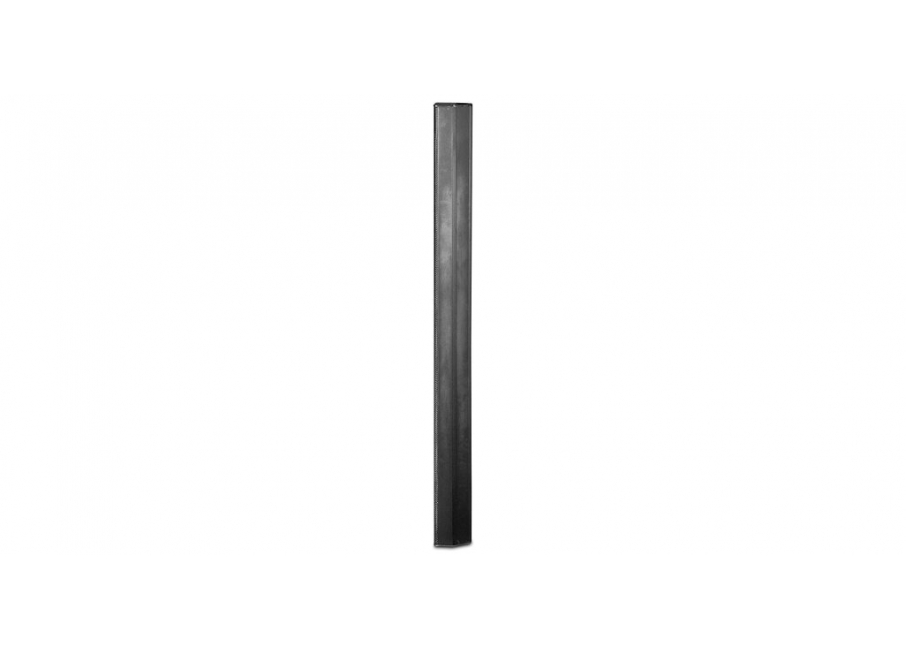

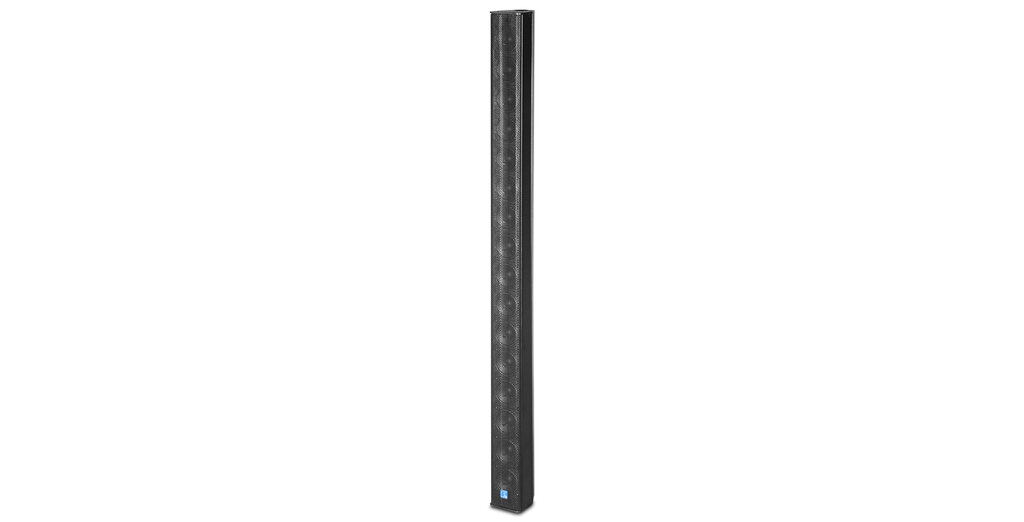

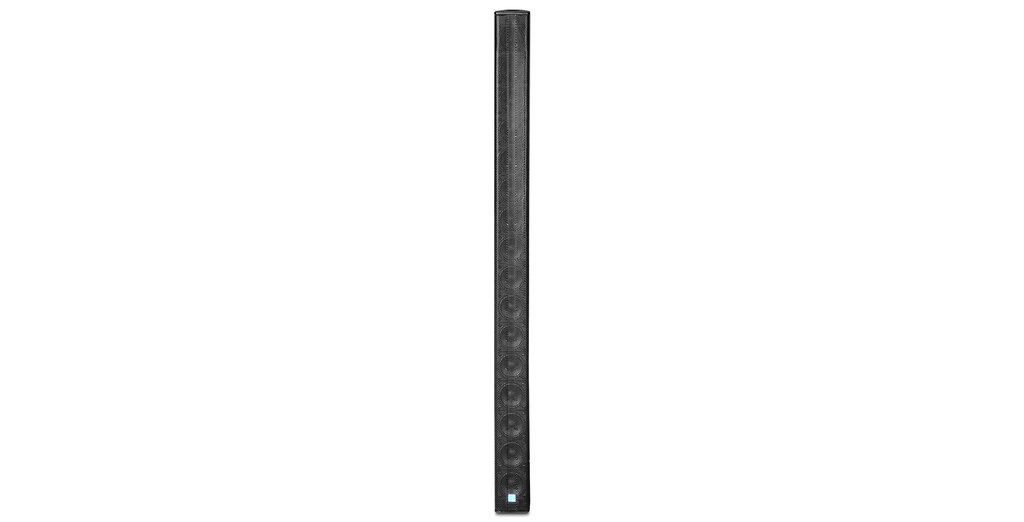

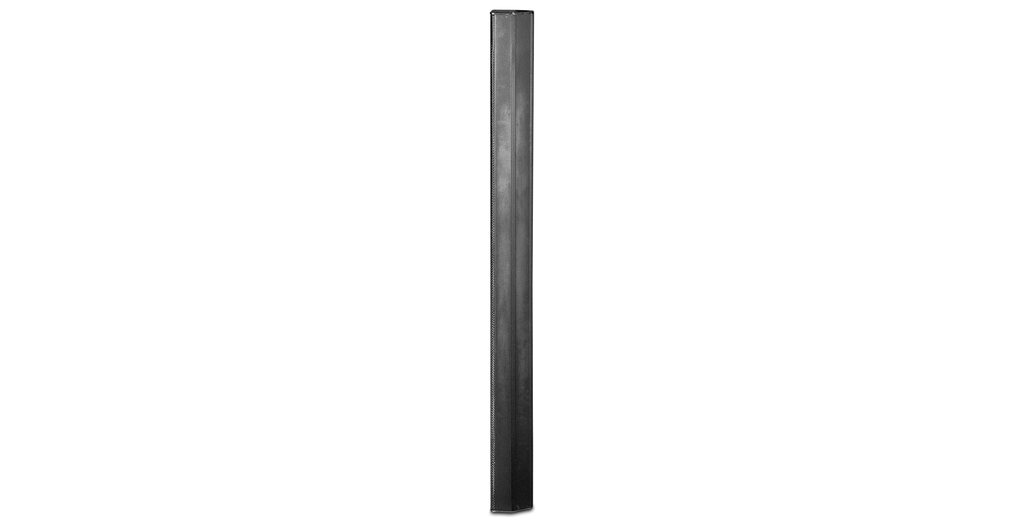

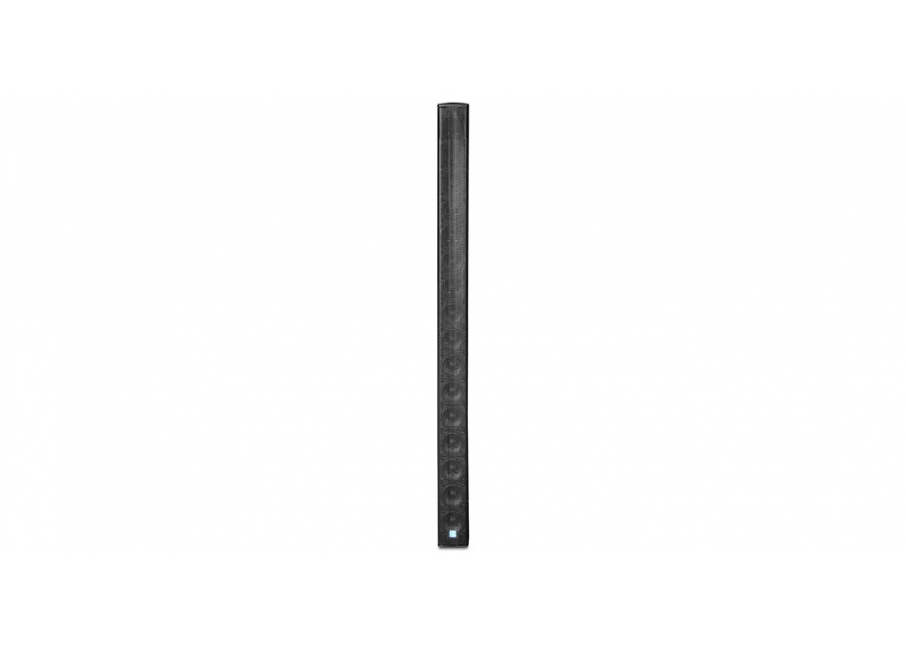

K163II
Column System
Contact
Features
● Light weight aluminium alloy enclosure

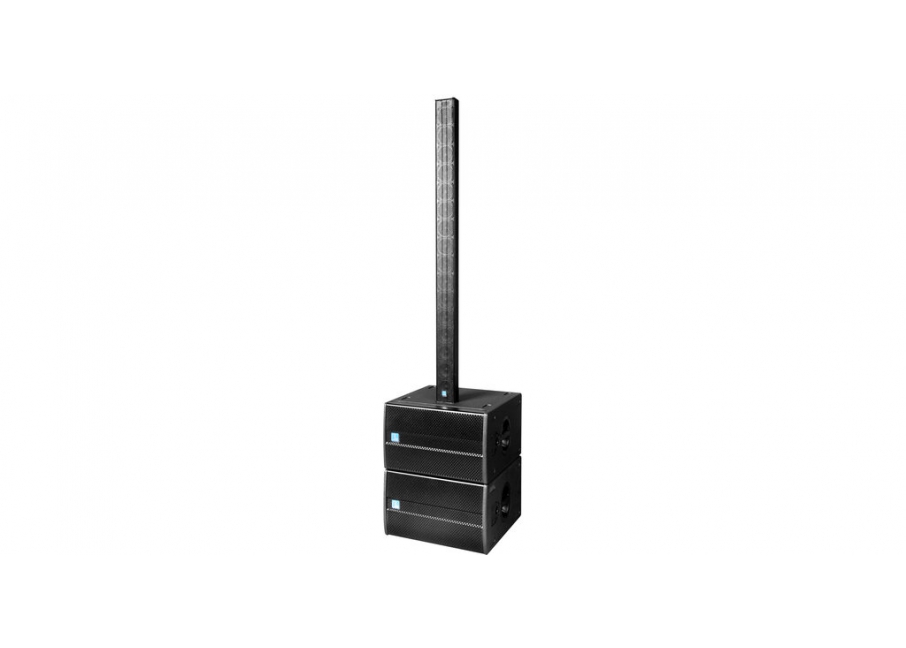

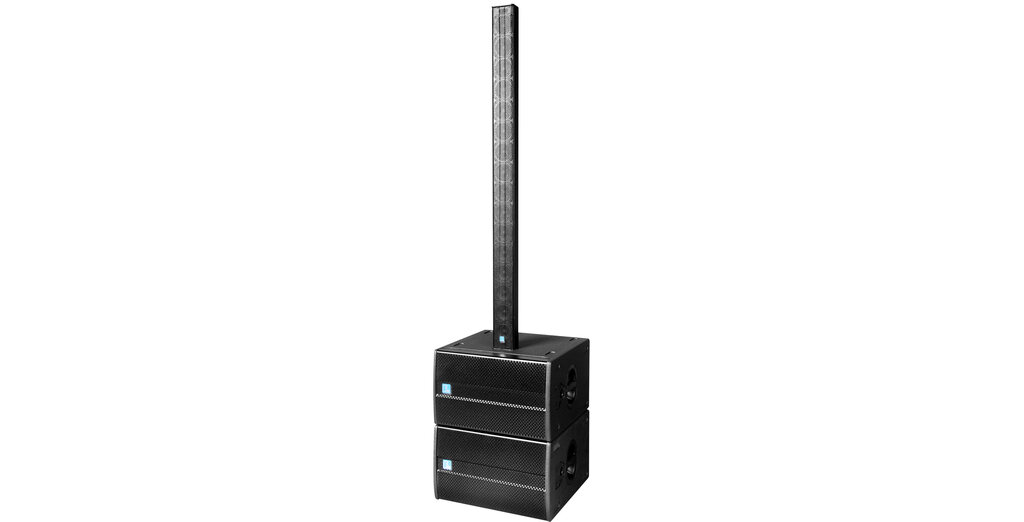

●Multi combinations and installation ways
●Hidden and external connections
●Used for moving performance, church and multi-purpose hall
| MODEL | K163II |
| FREQUENCY RESPONSE(-3dB) | 120Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 115Hz-20KHz |
| DRIVERS | 16×3"(83mm)/0.8"voice coil Mid/High Unit |
| RATED POWER | 400W RMS/1600W peak |
| SENSITIVITY | 100dB 1watt/1meter |
| MAXIMUM SPL | 126dB continuous/132dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 70° horizontal |
| INPUT CONNECTORS | 2xSpeakon NL4 |

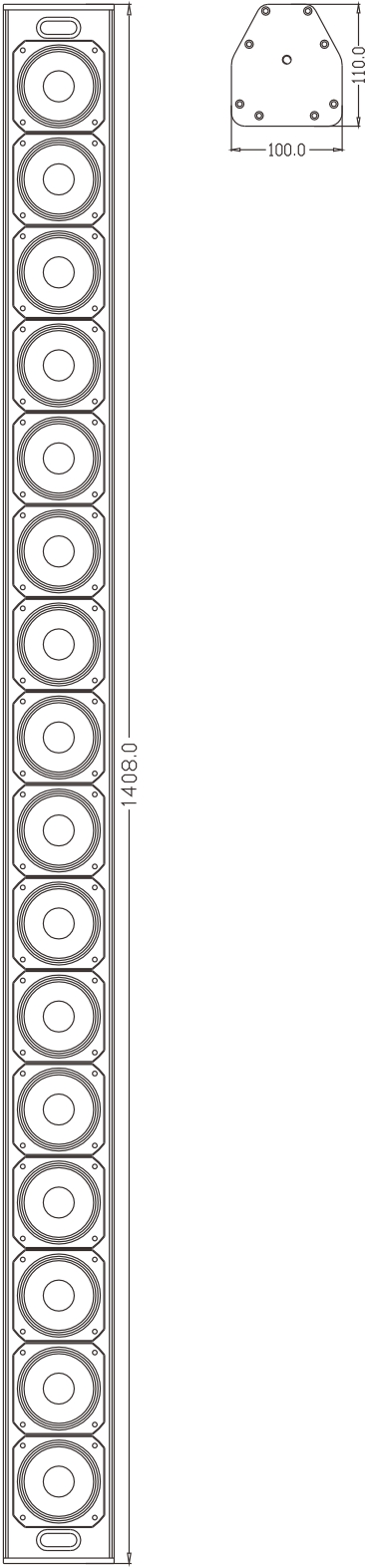

| PACKAGE SIZE | 1498x340x195mm(1pair/carton) |
| NET WEIGHT | 8.8 kg/pc |
| GROSS WEIGHT | 21 kg/pair |
K403II-K80II-K16II
Description
The K403Ⅱ/803Ⅱ/163Ⅱ is a series product, using the high quality 3" neodymium speaker units skillfully assembled into column speakers to meet the demands of different small and medium-scaled places,and the box body is made of aluminium alloy. The IP46 international standard can be met based on special request.
